ASUS PE1100N Edge AI System — NVIDIA Jetson Orin NX/Orin Nano

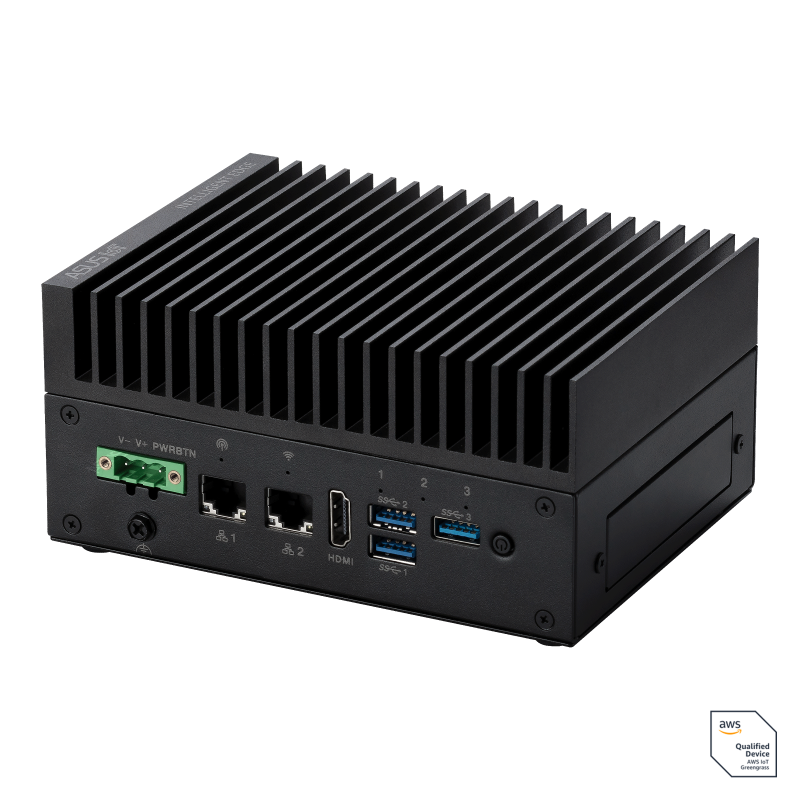

The ASUS PE1100N is an ultra-compact, fanless edge AI computer built on the NVIDIA Jetson Orin platform, designed for AI inferencing and computer-vision workloads in industrial and outdoor environments.

Key Features

• NVIDIA Jetson Orin Platform — configurable with Orin Nano 4GB/8GB or Orin NX 8GB/16GB modules, with 6 or 8 Arm Cortex-A78AE CPU cores and a GPU offering up to 1024 CUDA cores and 32 Tensor Cores.
• Up to 100 TOPS — delivers up to 5x the AI performance of the previous generation at just 10–25W, with up to 18x better performance-per-watt than comparable x86 platforms.

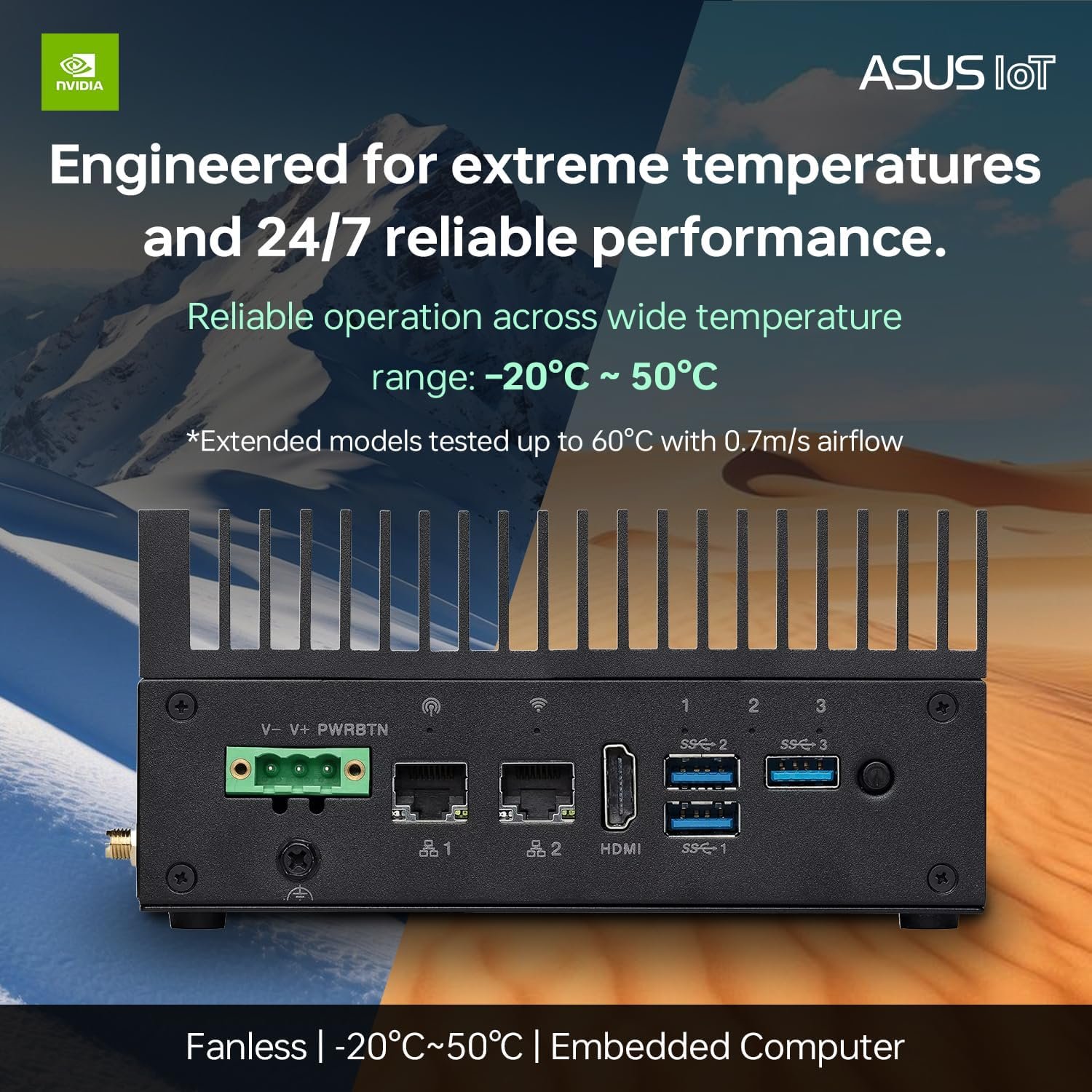

• Fanless, Rugged Design — compact 152 x 114 x 72mm chassis weighing 1.4kg, built for wide operating temperature ranges and continuous industrial duty.

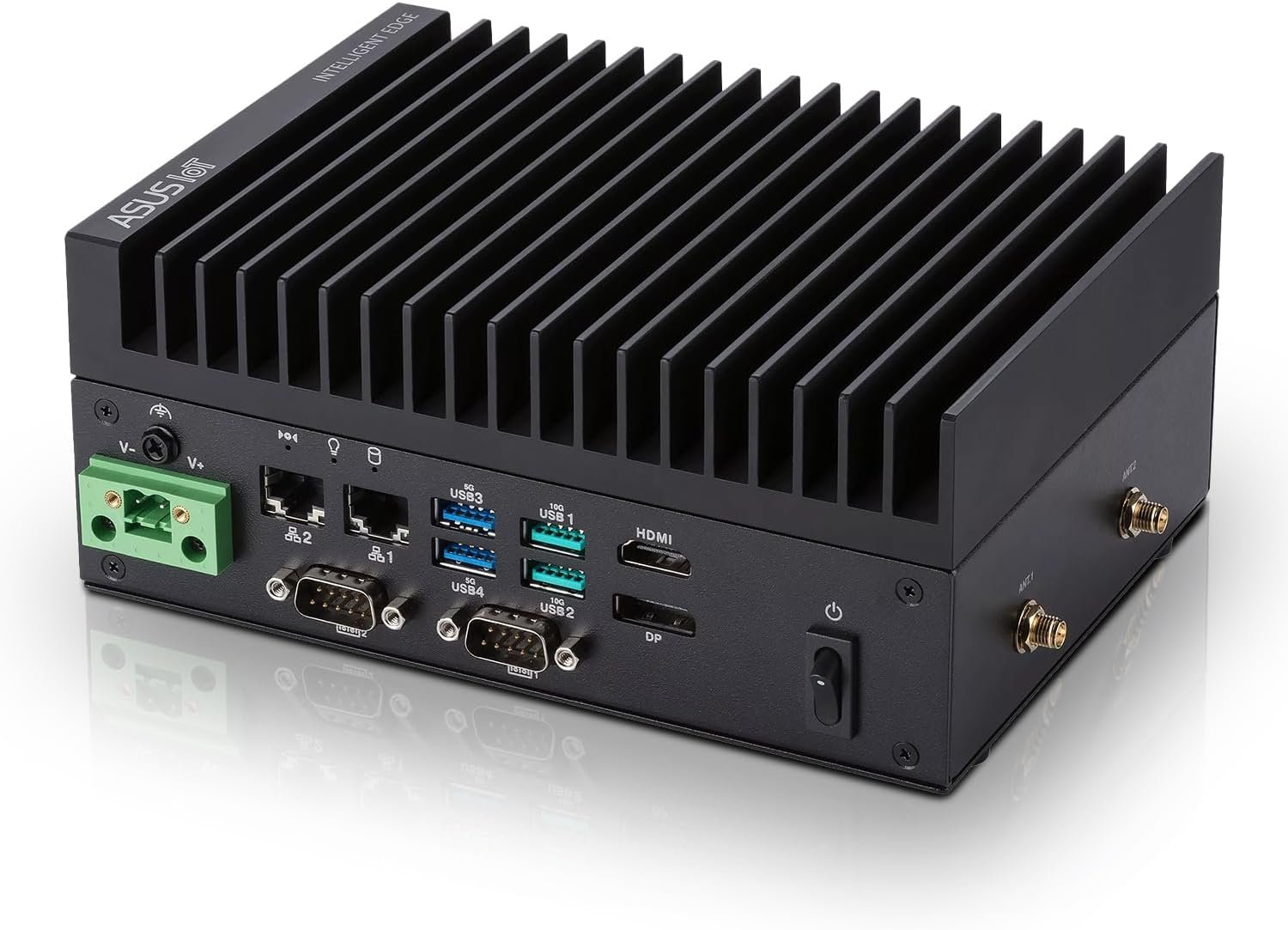

• Flexible Connectivity — dual LAN, USB 3.2, WiFi, Bluetooth, optional 4G/5G modules, and ASUS Expansion Module (AEM) support for DIO, COM, and CAN bus.
• AWS IoT Greengrass Certified — validated for cloud-connected edge AI deployments.
• Wide Power Input — runs on 12–24V DC, suited for vehicle, kiosk, and industrial power systems.
